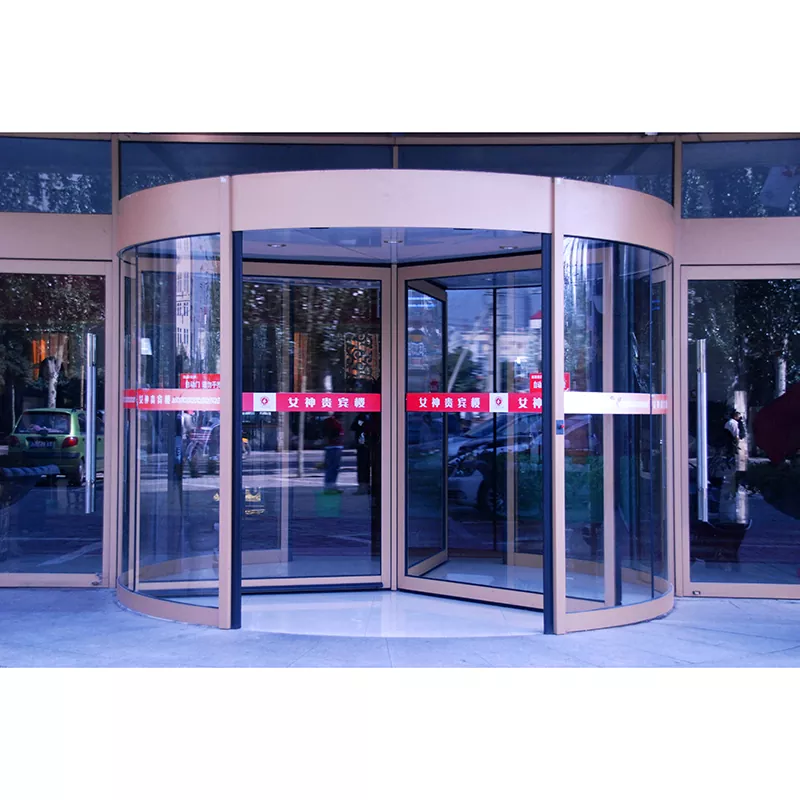

The Three-Wing Automatic Revolving Door represents a forward-thinking and functional solution tailored for high-traffic venues like commercial edifices, airports, and various other facilities that witness substantial pedestrian flow at their entrances. Perfect for structures where space for a broad entrance is constrained, this door efficiently rotates to separate passengers into three distinct compartments, ensuring privacy and ease. Furthermore, its sleek design offers flexibility for customization, enabling enhancements like the incorporation of a display case to elevate the aesthetic appeal of the entrance.
|
Standard configuration: |
|
|
1. |
Glass: door leaf and exhibition box are 6/8mm transparent tempered glasses, curved wall is 5+5mm arc safety laminated glass. |
|
2. |
Drive device: 220V±10%, 50-60Hz, 0.25-0.35 KW |
|
3. |
Central control computer: PLC programmable logic control system. |
|
4. |
Revolving pattern: the variable-frequency speed adjustment system starts, revolves, and stops smoothly and safely. |
|
5. |
Sensor: infra-red motion sensors |
|
6. |
Prevent pinching sensor: located at the upright column at entrance right. |
|
7. |
Avoid to knock at the door leaf: installed a sensor in the rubber strip at the bottom of the leaf (optional) |
|
8. |
Emergency stop button: installed on the upright column at entrance right |
|
9. |
Button for the disabled : use for disabled people pass slowly. |
|
10. |
Motor lock: used when door is out of service. |
|
11. |
6~9 pieces laser ceiling lamp |
|
12. |
Combination operation panel: functional combination operation panel facilitate function setting. |
|
Product |
Φ |
A |
B |
C |
E |
|
2400-3E |
2400 |
2200 |
2500 |
940 |
2570 |
|
2600-3E |
2600 |
2200 |
2500 |
1040 |
2770 |
|
2800-3E |
2800 |
2200 |
2500 |
1140 |
2970 |
|
3000-3E |
3000 |
2200 |
2500 |
1240 |
3170 |
|
3200-3E |
3200 |
2200 |
2500 |
1340 |
3370 |
|
3400-3E |
3400 |
2200 |
2500 |
1440 |
3570 |
|
3600-3E |
3600 |
2200 |
2500 |
1540 |
3770 |
1.Head rail standard height: 200mm or 300mm without display case, 300mm or 400mm with display case
2.Door leaf standard height: 2200mm(regulation range 2200mm-2400mm)
3.E-with display box
4.Exterior can be fluorocarbon coating spraying or stainless steel
|
Bearing capacity in the display case |
<20kg |
|
Revolving wheel load capacity |
<300kg |
|
Revolving speed |
0.45 ~ 0.7m/s |
|
Standby speed |
0.3 ~ 0.35m/s |
|
Working Temperature |
-30°C ~ 40°C |
|
Wind resistance |
Grade 8 |
|
Power voltage |
Single phase AC230V~100V, 50Hz~60Hz, 10A |
|
Power consumption(working) |
150W |
|
Power consumption(standby) |
75W |
|
Noise |
<60dB |
|
Lighting power |
LEDdown light 18W |
|
Motor power |
250W max |
|
UPS power supply time |
3min |
|
PLC programmable controller system |
Yes |
|
Operation modes Selection: |
|
|
Windbreak, dust proof and sound insulation |
Yes |
|
Programming parameters via integratedprogrammable logic control system |
Yes |
|
Door working, malfunction,etc reading with message on LED display. |
Yes |
|
Safety with Anti-bump, anti-squeeze, anti-strike,vertical safety rubber switch |
Yes |
|
Safety with kinds of safety sensor,etc. |
Yes |
|
Central control withoff-fire protection |
Yes |
|
Access control with radars,remote,keypad,etc |
Yes |
|
Emergency with Disable switch, emergency stop switch,etc |
Yes |
|
Rechargeable battery pack for emergency operation |
Yes |
