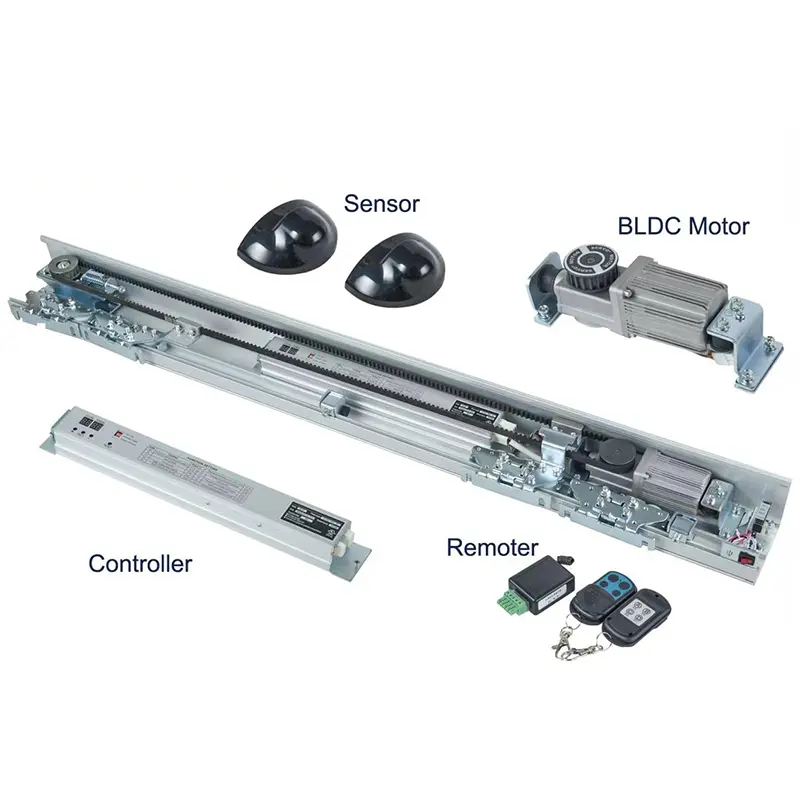

The Sliding Remote Door VZ-150 can used with four key remote control. The remote control can be used to set the function of lock, half open, full open and automatic.
|
Door style |
Single-opening |
Double-opening |
|
Door leaf weight |
≤1*150 kg |
≤2*140 kg |
|
Door leaf width |
600-1200mm |
500-1150mm |
|
Opening speed |
150-450mm/s(Adjustable) |
|
|
Closing speed |
100-430mm/s(Adjustable) |
|
|
Motor |
24V 60W brushless DC motor |
|
|
Opening time |
0-9second(Adjustable) |
|
|
Impact function |
Rebounding up on impact |
|
|
Voltage |
AC220V 50Hz-60Hz |
|
|
Operating Temperature |
-20°C~60°C |
|
**Advanced electric lock with self-testing function , ensure the doors are always secure.
**Work at a wide range of power, low power consumption, energy-saving.
**Low noise drive unit, simple and convenient installation.
**Can work excellently with fingerprint switch, remote control, push button, access keypad, safety sensor, digital wireless video, etc .
**The technical parameters can be adjusted to accommodate different conditions.
