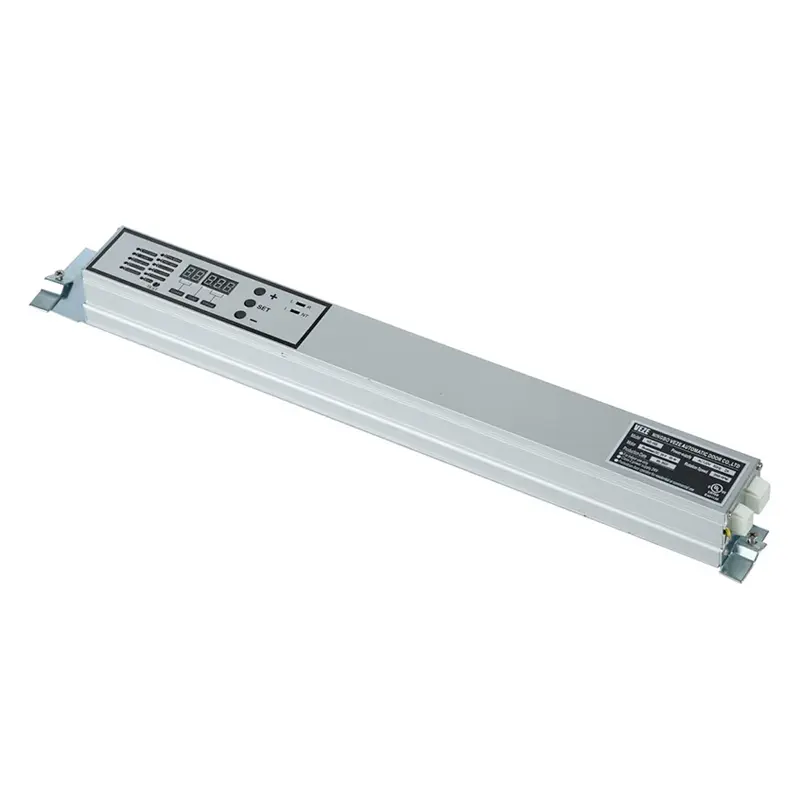

THE MAIN FUCTION OF Automatic Breakout Sliding Door BREAKOUT SYSTEM IS THAT IN THE EVENT OF EMERGENCY CIRCUMSTANCES (E.G. FIRE),THE SMOOTH AUTOMATIC DOOR CAN BE ROTATED BY HAND TO OPEN AT 90 DEGREES. THE MICROCOMPUTER CONTROLLER HAS COMPREHENSIVE FUNCTIONAL INTERFACES, INCLUDING FIVE FUNCTIONAL SWITCHES, BACKUP POWER SUPPLY, AN EMERGENCY STOP SWITCH, FIRE LINKAGE DEVICES, AND OTHER INTERFACES.
The Automatic Breakout Sliding Door designed for the use on escape routes.
|
Door opening mode |
Single-opening |
Double-opening |
|
Door leaf weight |
≤1*155 kg |
≤2*145 kg |
|
Door leaf width |
600-1200mm |
500-1100mm |
|
Opening speed |
150-600mm/s(Adjustable) |
150-550mm/s(Adjustable) |
|
Closing speed |
120-550mm/s(Adjustable) |
120-500mm/s(Adjustable) |
|
Motor |
24V 55W brushless DC motor |
|
|
Hold open time |
0-9second(Adjustable) |
|
|
Special Function |
Security ,Hermetic |
|
|
Voltage |
AC110V-220V 50Hz-60Hz |
|
|
Operating Temperature |
-20°C~60°C |
|
