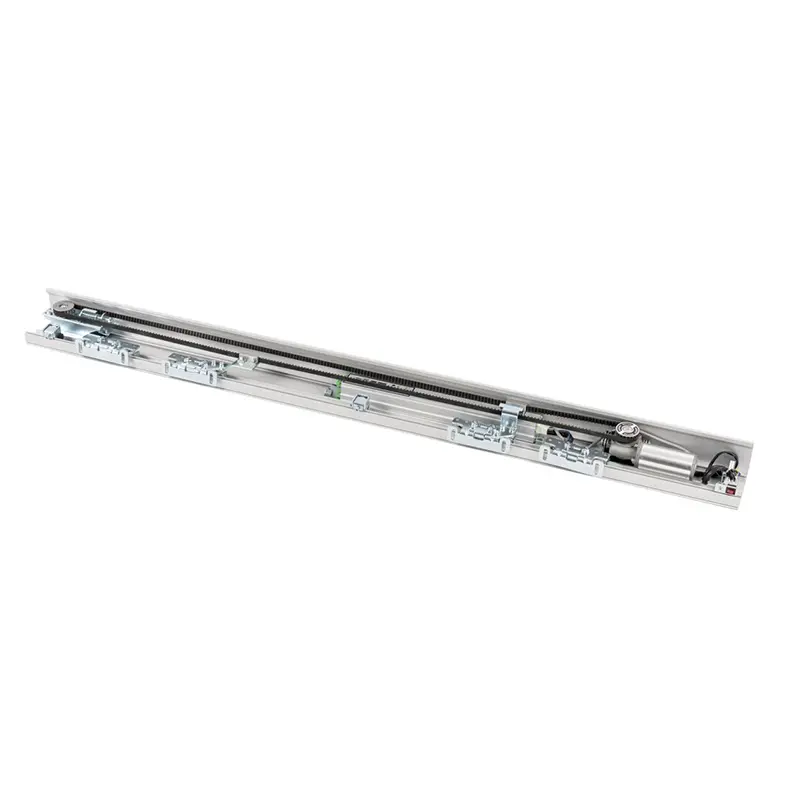

VZ-155 UL Approved Automatic Sliding Door has passed the UL certification. It is widely used in automatic doors of office buildings, banks, airports, fruit shops, supermarkets, shopping malls, retail centers, restaurants,etc.
|
Door opening mode |
Single-opening |
Double-opening |
|
Door leaf weight |
≤1*155 kg |
≤2*145 kg |
|
Door leaf width |
600-1200mm |
500-1100mm |
|
Opening speed |
150-600mm/s(Adjustable) |
150-550mm/s(Adjustable) |
|
Closing speed |
120-550mm/s(Adjustable) |
120-500mm/s(Adjustable) |
|
Motor |
24V 55W brushless DC motor |
|
|
Hold open time |
0-9second(Adjustable) |
|
|
Special Function |
Security ,Hermetic |
|
|
Voltage |
AC110V-220V 50Hz-60Hz |
|
|
Operating Temperature |
-20°C~60°C |
|
|
Model Number |
VZ-155 |
|
Open Style |
Automatic induction |
|
Position |
Commercial premises, hotels, banks, office buildings |
|
Surface Finishing |
Finished |
|
Type |
Sliding Doors |
|
Sliding Door Type |
Single-leaf of bi-parting glass doors |
|
Door Material |
12mm tempered glass |
|
Power supply |
110v~220V±10%, 50/60HZ |
|
Product name |
Automatic door |
**1 million times of tests passed.
**Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.
**Various accessories available: mode selector, lock device, battery pack and sensors.
**passed the UL certification
**Warranty: 18months
