VZ-300 250kg Automatic Sliding Door Inheriting the design concept of European products, following the structural system of modern industry, adopting modular design, it has a simple appearance, excellent modern sense, strong adaptability, intelligent learning, automatic detection of door weight and running width, automatic optimization of running status and other features.
250kg Automatic Sliding Door has unique mobile phone APP remote control system, separate emergency stop, fire alarm signal, power off to save running data and other functions, to meet the various needs of users.
Technical specifications of 250kg Automatic Sliding Door:
Door style
Single-opening
Double-opening
Door leaf weight
≤1*300 kg
≤2*250 kg
Door leaf width
600-1300mm
600-1250mm
Opening speed
150-700mm/s(Adjustable)
Closing speed
100-600mm/s(Adjustable)
Motor
24V100W brush DC motor
Opening time
0-9second(Adjustable)
Impact function
Rebounding up on impact
Voltage
AC110-220V 50Hz-60Hz
Profile size
4100mm(L)*80mm(H)*140mm(W)
Packaging size
4220mm*160mm*110mm
Weight
30kg
Operating Temperature
-20°C~60°C
Features and functions of 250kg Automatic Sliding Door:
a. The door opening and closing stroke is self-repaired;
b. It rebounds when encountering resistance, in line with the EU EN16005 standard, less than 150N;
c. The chip stores learning data and does not restart after power failure;
d. Emergency stop and emergency push-open signal, this signal is the highest priority;
e. Fire alarm special signal, this signal is the second priority;
f. One-key restore to factory settings (press and hold the learning button for 7 seconds);
g. Use photoelectric encoder, metal code disk 100 lines, more precise control;
Sectional view of VZ-300

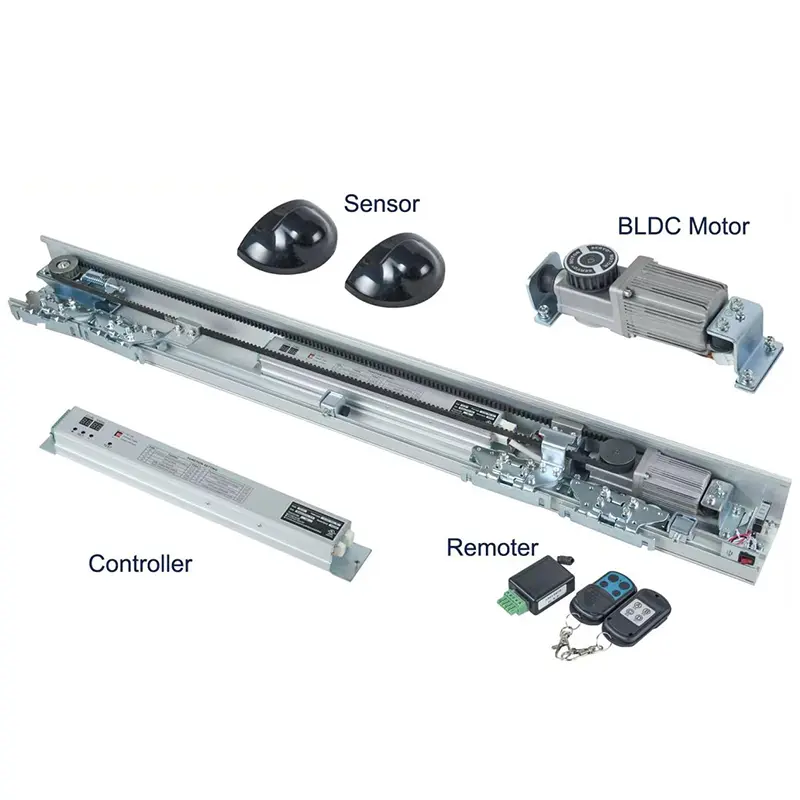

The mini-drive of VZ-300 250kg Automatic Sliding Door:
Hot Tags: 250kg Automatic Sliding Door, China, Manufacturer, Supplier, Factory, Discount, Price List, Quotation, CE, UL, 3 Years Warranty
For inquiries about Automatic Sliding Door, Automatic Swing Door, Hermetic Door or price list, please leave your email to us and we will be in touch within 24 hours.
