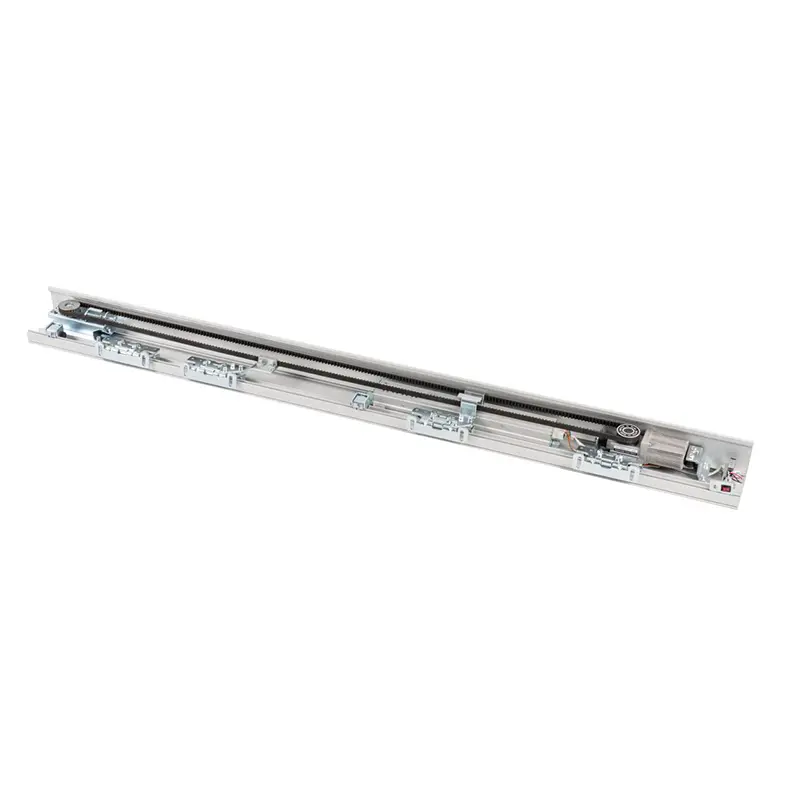

VZ-125A Light-Duty Automatic Sliding Door automatic sliding door system is developed and developed for light glass doors. The maximum weight of the door body is 120 kg.
|
Door style |
Single-leaf |
Double-leaf |
|
Door leaf weight |
≤1*120 kg |
≤2*120kg |
|
Door leaf width |
600-1200mm |
500-1100mm |
|
Opening speed |
100-500 mm/s(Adjustable) |
100-500 mm/s(Adjustable) |
|
Closing speed |
100-500 mm/s(Adjustable) |
100-500 mm/s(Adjustable) |
|
Motor |
24V 55W brushless DC motor |
|
|
Hold open time |
0-9second(Adjustable) |
|
|
Safety feature |
reverse upon an obstruction |
|
|
Power supply |
AC220V, 50Hz-60Hz |
|
|
Operating Temperature |
-20°C~50°C |
|
1.Safety beam and safety photocell make it more safe and more reliable.
2.Can work excently with fingerprint switch, remote control, push button, access keypad, safety sensor, digital wireless video, etc
3.Work at a wide range of power, low power consumption, energy-saving.
4.Optional backup battery can ensure the normal operation in case of the power failure.
5.Can install electromagnetic lock, make the system more safe and reliable.
6.The 24V DC brushless gear motor enables intensive usage with a very low degree of noise.
