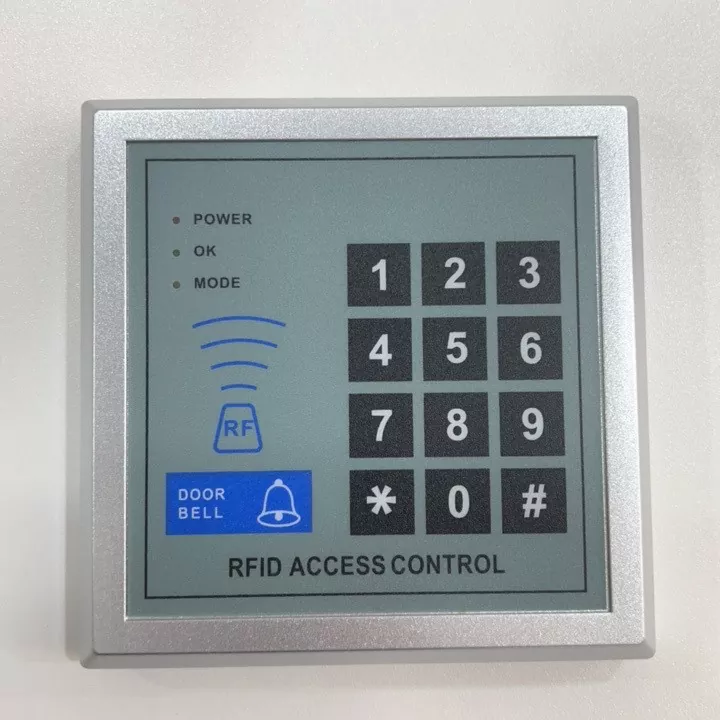

Access Control Device

The RFID Access Control Device for automatic doors is a versatile solution suitable for a wide range of settings, including office buildings, banks, hotels, and various commercial establishments. Featuring an elegant exterior design, the device can be seamlessly integrated into wall surfaces during installation. It supports three user-friendly entry methods: proximity card only, password only, proximity card+password. Additionally, the device's robust construction ensures long-lasting performance and reliability, with a mechanism to safeguard all data integrity even in the event of power outages.

Send Inquiry

Product Description

The RFID Access Control Device for automatic doors is a versatile solution suitable for a wide range of settings, including office buildings, banks, hotels, and various commercial establishments. Featuring an elegant exterior design, the device can be seamlessly integrated into wall surfaces during installation. It supports three user-friendly entry methods: proximity card only, password only, proximity card+password. Additionally, the device's robust construction ensures long-lasting performance and reliability, with a mechanism to safeguard all data integrity even in the event of power outages.

Overall characteristics

1. With the standard capacity of the user records of 1000pcs.

2. Opening method: Proximity card, password, proximity card+password.

3. Durable and reliable. All data will not be lost due to power outages.

4. Easy and simple to operate, flexible to add and delete the cards.

5. User-friendly with sound and light instruction.

Technical parameters:

Working voltage: DC12V

Unlock current: <1000mA

Quiescent current: <60mA

Storage Capacity: 1000 standard user

Reader distance: 5 ~ 20cm

User card type: EM or EM compatible card

Operating temperature: -10 ℃ ~ 70 ℃

Working humidity: 10% ~ 90%

Size: 117 (L) × 117 (W) × 21 (H) mm

Can be directly connected to the automatic door to realize the coordination function of unlocking first and then opening the door.

Wiring diagram

Operation instruction:

More Access Control Devices optional

FC01	Five-range programmed function switch Power: 12~36V Function status: full open, half open, exit only, lock, automatic Size:113×63×20mm(L×W×H) Function switch against passwords, safe and reliable. With memory function in case of power failure. Password can be reset.
FC02	Five-range function keypad Power: 12~36V Functions: full open, half open, exit only, lock, automatic Size:86×86×10mm(L×W×H)
KP01	Function key switch(five-range) Power: AC/DC 18~36V Functions: full open, half open, exit only, lock, automatic Size:86×86×10mm(L×W×H)
KP02	LED key switch(five-range) Power: AC/DC18~36V Size:92×92×46mm(L×W×H) Functions: full open, half open, exit only, lock, automatic This product is unidirectional command switch for automatic door accessory using. With special design with bottom panel, it is convenient for different installation occasions.
KP03	Five-range LCD key switch Power: AC/DC12~36V Size:92×92×33mm(L×W×H) Functions: full open, half open, exit only, lock, automatic This product is unidirectional command switch for automatic door. With TFT true color liquid display, special design with bottom panel, it is convenient for different installation occasions.
PB07	Infrared hand sensor switch Power: AC/DC12~36V Size:92×92×33mm(L×W×H) Transmit distance: 1-20cm, can be set according to actual occasion.
FC04	Learning code remote control device(4 channels) Power: 24VDC 433MHZ Learning code type Transmission distance: 25M Function status: full open, half open,lock, automatic
FP01	FingerprintAccess Control Device / time attendance machine Power supply：12VDC Fingerprint capacity：1000 Recorded capacity：100,000 Dimension：1808253(L×W×H) Identification mode: Fingerprint / ID card / Password Voice prompt: available
PB04	No touch hand sensor switch Power: DC 12V Working type: infrared induction Working distance: 1-15cm, can be set according to actual occasion. Weight: 83g Size: 89×89×37mm(L×W×H)
PB05	Infrared touchless hand sensor switch Power: AC/DC12~36V Working type: infrared induction Transmit distance: 1-15cm, can be set according to actual occasion. Size:113×63×20mm(L×W×H) Weight: 110g
PB06	Wireless push button switch Power: AC/DC12~36V Hold open time：1-9S adjustable Pushing panel：203（L）41（W）12.5（H）mm Receiver：123（L）50（W）32（H）mm Widely be used for auto door and door control equipment. With the wireless signal output,door can be open by the pushing the panel. Easy installation, specially designed for the occasions which have difficulty in wire embedding.
AK03	Access keypad Power: 12VDC Storage capacity: 1000 users Open method：Card, password, card+password. Dimension：115×75×21（mm)
AK04	Access keypad Power: 12VDC Storage capacity: 1000 users Open method：Card, password, card+password. Dimension：110×75×25（mm)
FP02	Finger printer(stainless) Power: DC 12V Memory capacity:120 Weight: 500g Size: 115×70×35mm(L×W×H)
PB03	Wired push button switch(plastic) Weight: 96g Size: 203×41×12.5mm(L×W×H)
PB02	Wired push button switch(stainless) with blue LED Weight: 65g Size: 86×86×35mm(L×W×H)
	Wired push button switch(stainless) with blue LED Weight:30g Size: 91×28×20mm(L×W×H)
PB01	Wired Plastic switch Weight:50g Size: 86×86mm(L×W)
