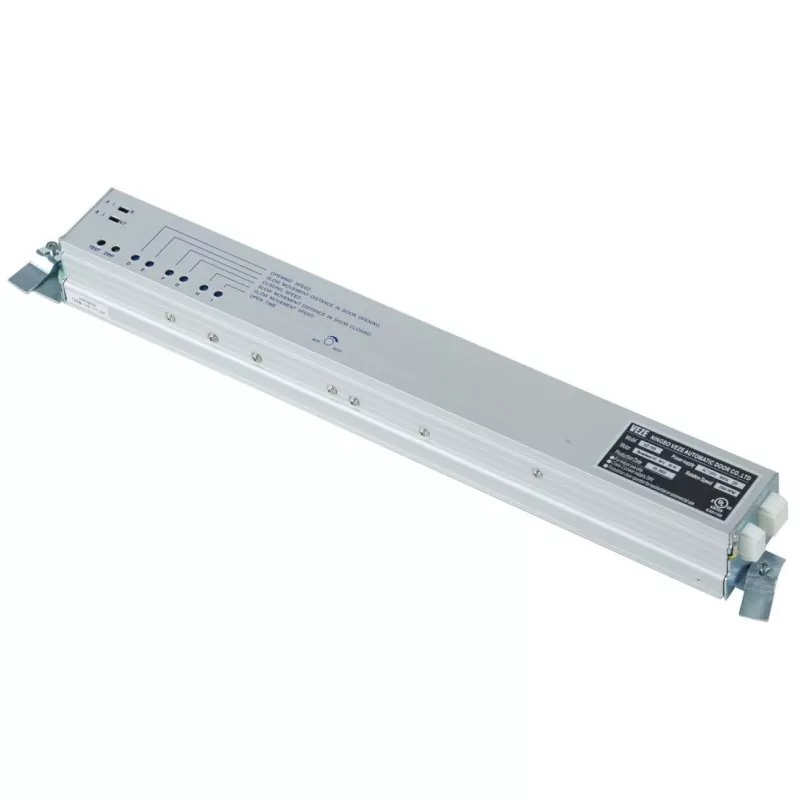

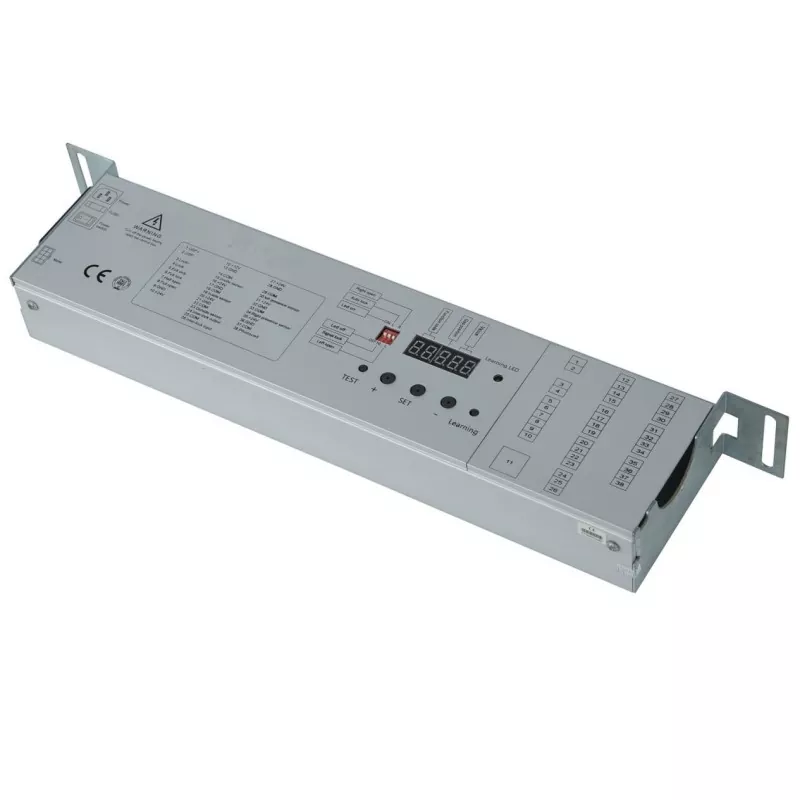

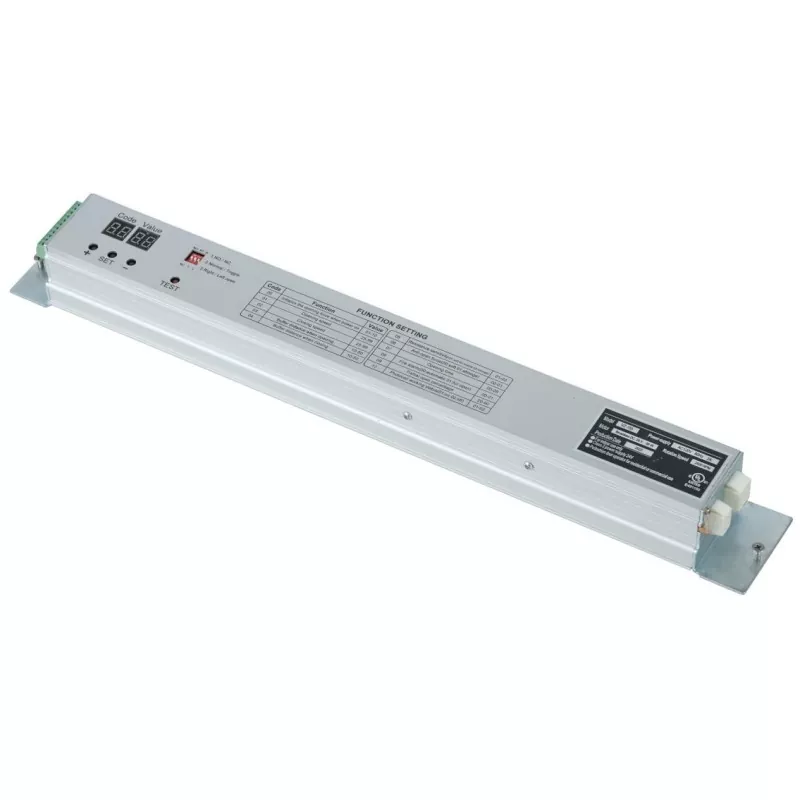

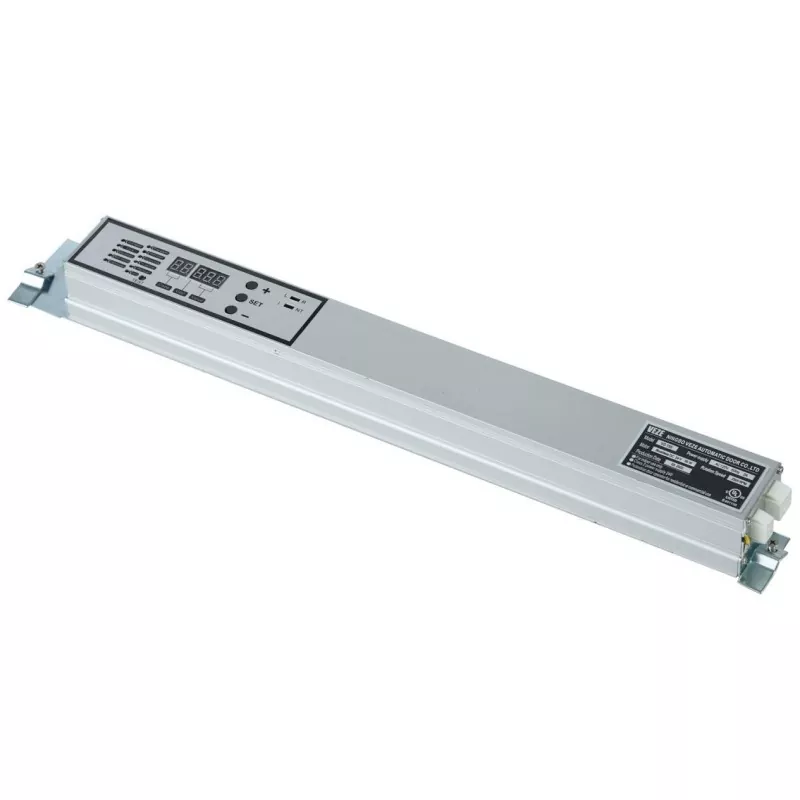

The Automatic Door Controller offers advanced intelligence, precision, safety, compatibility,flexibility,multi-functionality and user-friendliness. It allows for intuitive configuration and adjustment, ensuring that your automatic doors perform optimally at all times. Whether you're looking to enhance accessibility in a bustling office, streamline operations in a retail store, or add a touch of modern luxury to your home, our digital controller is the perfect solution.The controller integrates seamlessly with various access control devices, providing precise motion control and a user-friendly interface that simplifies daily management.
|
Power supply |
24 VDC |
|
Consumption |
60-100 W |
|
Rated Torque |
2600 g/cm |
|
Rated Speed |
2500 rpm |
|
Gear Ratio |
1/15 |
|
Environment Temperature |
-20ºC to +50ºC |
|
Weight |
2.20 Kg |
|
Dimensions |
215 x 94 x 78 mm (LxHxW) |
|
No. of Cycles (Opening – Closing) |
> 100,000,000 |
|
Protection Degree |
IP65 |
(1) Intelligent control system, easy operation and adjustment
(2) Automatic learning function, automatic inspection of the weight and width of the door, according to the results of inspection to keep doors in the best operating state.
(3) Complete functions can make users to choose various modes to open and close doors.
(4) Reasonable mechanical design, making installation and debugging simpler.
(5) Remote parameter setting interface in the controller, wireless remote parameter setting.
(6) Can be connected with all kinds of access control devices
