Automatic Door Function Switch

The automatic door five-function selector switch is a versatile access control device that allows users to choose from five distinct operational modes for their automatic doors. Each function on the switch corresponds to a specific setting, providing a range of options to suit different needs and scenarios.

Overall Features of Automatic Door Function Switch:

1. Adopting five-range of switch function of microcomputer with high integration.

2. With DC 12V ~ 36V power input, it is convenient to take power from auto-door unit.

3. Featured with exquisite cover, compact size and easy to be fixed.

4. With password storage unit , function switch against passwords, safety and reliability.

5. Function switch with 5 control buttons.

6. Instructions with indicator light o confirm the validity operation.

7. With memory function in case of power failure.

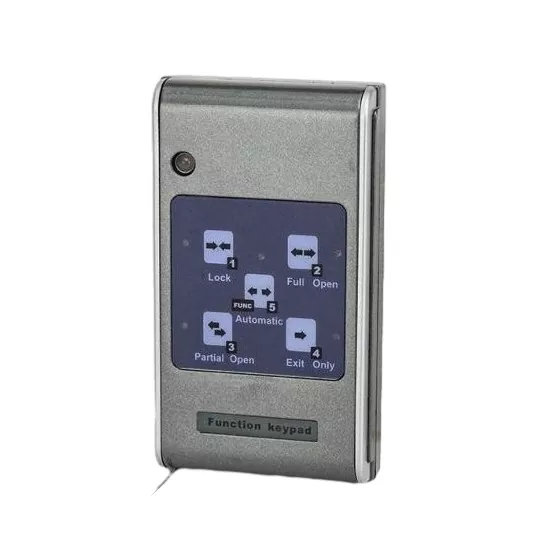

The five optional functions description of

Lock: All probe and access controller lose effectiveness, electric lock locked automatically, people inside and outside can not enter in. Be used for preventing thieves at night or on-holidays periods.

Full open: All probe and access controller lose effectiveness. Door keeps full open. For emergency wiring .

Partial open: External and internal probes are effective. Door maintains partial open and shut back. Working hours with normal business.

Exit only: External probe  loses effectiveness and electric lock locked automatically while external access controller and internal probe are available. Internal probe is effective, people can get out. Be used for clearing up a gathering place.

Automatic: Internal and external probe are effective. Working hours with normal business.

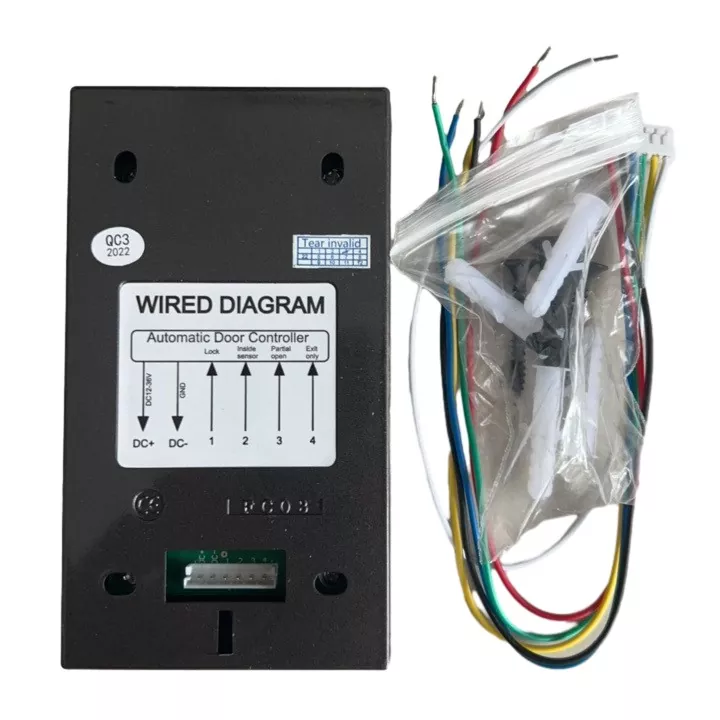

The Definition of Input and Output Leads
