Automatic Door Sensor

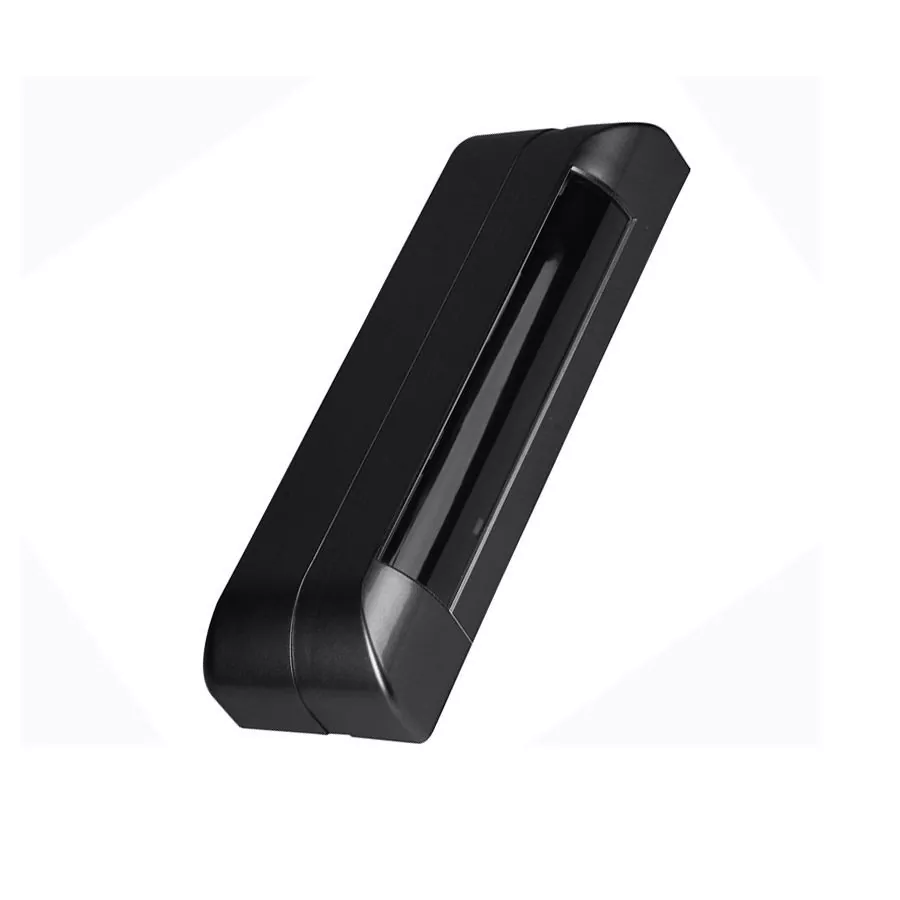

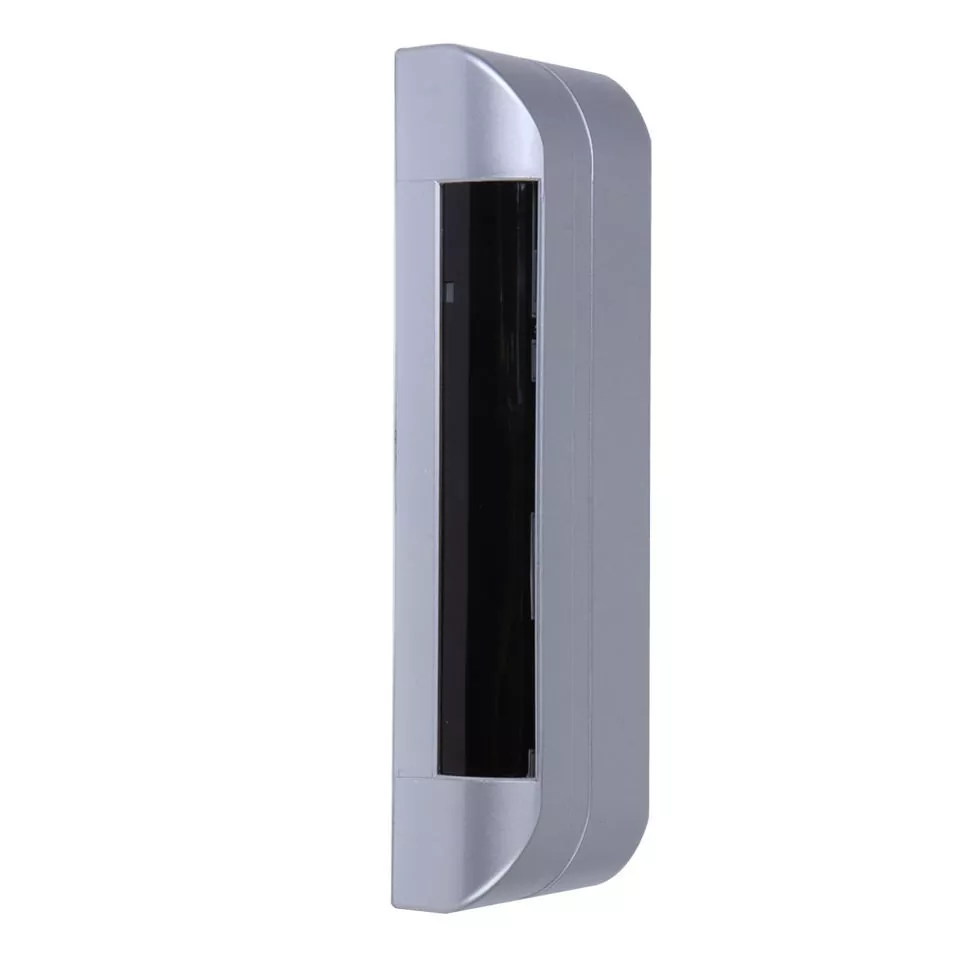

IS01 is active reflective infrared motion detection sensor for automatic door This specialized sensor uses active infrared (active IR) technology to detect the movement and activate the automatic door. It probes the temperature changes in the sensing zone. When a person or an object is moving towards the door, the heat signal is detected by the sensor, which will indicate the door to open immediately.

Send Inquiry

Product Description

IS01 is active reflective infrared motion detection sensor for automatic door This specialized sensor uses active infrared (active IR) technology to detect the movement and activate the automatic door. It probes the temperature changes in the sensing zone. When a person or an object is moving towards the door, the heat signal is detected by the sensor, which will indicate the door to open immediately.

Compared to radar sensor, the infrared sensor detecting range is narrow and accurate, it's a great alternative of microwave sensor activation on street front doors with big passenger flow. Its precisely adjusted probing zone can avoid unnecessary detection on irrelevant passing flow.

Technical specifications of automatic door infrared sensor:

Ray Type	Reflect Infrared
Quantity of Ray	8 emit rays and 8 receive rays
The Function Type	Detect moving thing (people)
Max. Installing Height	3m
Sensitivity Adjusting	Sensitivity fine-tuning

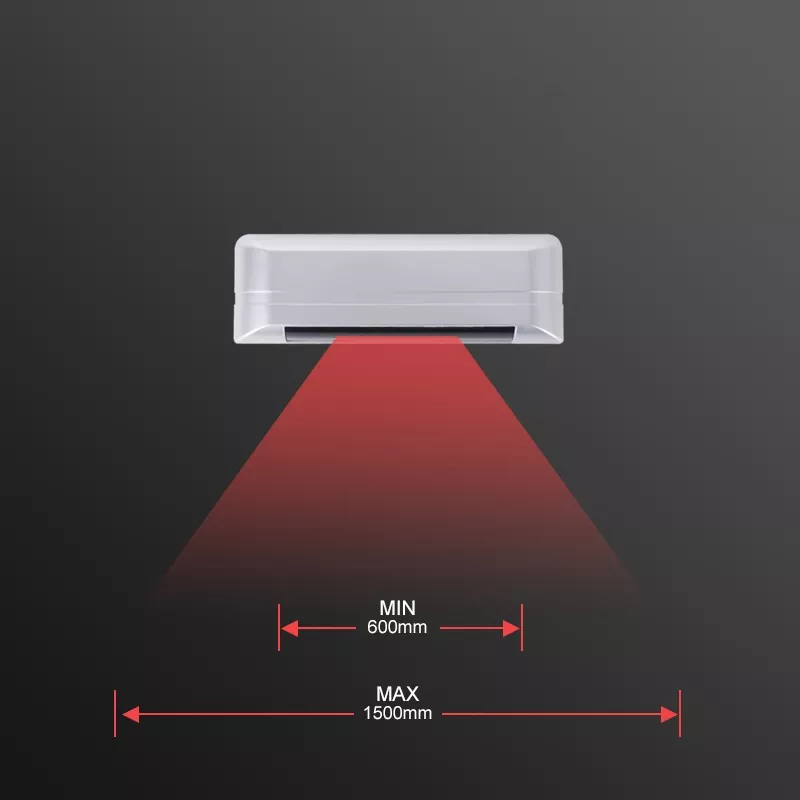

Adjustment of Detect Area	Adjusting detector angle 0°~10°
Adjustment of Detect Area	Adjusting by DIP switch
Power	AC/DC12-36V±5%
Consumption Capacity	Less than 2.5VA
Relay Output	DC50V,0.1A
Output Maintaining Time	2s
Indication of Output	Standby with green light, signal receive with red light
AMB/ENT Temperature	-20ºC~+60ºC
Weight	400g
Color	Silver,black
Accessories	Soft cable 2..5m, mounting screws 2 pieces, installing paper, manual instruction

Packing list automatic door infrared sensor

Notice of Installing

1.Please install within 3m, or the detection sensibility will be reduced.

2.Please don't put things such as curtain, flowers and trees which are easy to swing at the detecting area, otherwise will cause the error movement.

3.Please don't put in place where is invaded by vapor or oil fog. Otherwise it may cause error action.

4.Though the product has anti-interference function. In case in the nearby area more than 3 sets need to be installed, it may occur error action due to the interference. So please ensure the right installing place or ask us for technical support.

5.Please don't put it in place where the reflecting light such as sun light could reach the detecting lenses, otherwise it may cause error action. The back ground materials are marble and aluminum etc.

Common Fault of automatic door infrared sensor

Phnomena	Cause	Handling
No Action	No connection for cable	Please ensure the cable has been connected
No Action	Power or voltage	Please use the standard power (AC/DC12-36V)
Sometimes Does Not Work	Detection lense was polluted by the dust or water drop. So that detection sensibility reduced.	Clean with soft fabric and adjust the sensibility fine-tunning to H
Sometimes Does Not Work	Detection range is not proper	Adjust oblique of the detector body
	Swinging thing within the detection range	Adjust the detection range or move away the swinging thing.
Error Action	Moving the people within the detection range	Please re-adjust the DIP switch, or adjusst the oblique of the detector body.
Error Action	Too sensitive	Adjust the DIP AWITCH to ON position and adjust the sensibility fine-tuning to L position

More Automatic Door Sensors available:

ITEM	Specification
MS01	Microwave sensor(10GHZ/24GHZ) Power: AC/DC 12~36V Radio frequency:10.525GHZ/24.125GHZ Protection level: IP52 Size:131×61×46mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted.
MS02	Microwave sensor(24GHZ) Power: AC/DC 12~36V Radio frequency: 24.125GHZ Protection level: IP52 Size:140×46×45mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted.
MS03	Microwave Sensor(24GHZ) Power: AC/DC 12~36V Radio frequency: 24.125GHZ Protection level: IP52 Size:121×80×51mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted.
MS-204	Microwave Sensor(24GHZ) Power: AC/DC 12~30V±10% (50Hz to 60Hz) Radio frequency: 24.125GHZ Protection level: IP52 Size:150×50×38mm(L×W×H) Max installation height: 4M Detection range and sensibility can be adjusted.
IS01	Infrared sensor Power: AC/DC 12~36V Sensing distance：0.2m-2m Size:221×74×35mm(L×W×H) Max installation height: 3M Detection range and sensibility can be adjusted. The product can be used in the occasion where the building environment is narrow and close to street and the accuracy detection ability is demanded. Detection sensing distance adjustable, with high anti-interference, easy operation and reliable.
IS02	Combined microwave&infrared sensor Power:AC/DC 12~36V Transmitting frequency:24.125GHZ Protection level:IP54 Size:262×55×44mm(L×W×H) Max installation height: 3M Combined radar activation and Infrared safety sensor is used for automatic sliding door, folding door and curve door. Radar technology is for door activation. Infrared technology is for door safety entrance. Unique anti-clip function design, no need extra safety beam sensors. Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions. Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable. Microwave technology adopts the Germany Microwave sensor module, not influenced by temperature and humidity with reliable working performance.
IS03	Infrared Motion &Presence Safety Sensor Power Input: AC/DC 12 24V(±10% ) Transmitting frequency:24.125GHZ Protection level:IP54 Size:229×67×41mm(L×W×H) Max installation height: 3M 1.Applied to the opening and safety protection function of the translational door. Infrared sensing is used for starting and anti clamping; 2.Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions.Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable;
IS04	Microwave Motion & Infrared Presence Sensor Power Input: AC/DC 12~30V(±10%) Transmitting frequency:24.125GHZ Protection level:IP44 Size:267.2×61.1×46mm(L×W×H) Max installation height: 3.5M 1.Used for automatic sliding door,folding door and Curve door.Radar technology is for door activation.Infrared technology is for door safety entrance; 2.Have function of background self-learn. Can learn background automatically when power on. Suit all kinds of occasions.Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable
V01	Microwave Motion & Infrared Presence Sensor Power Input: AC/DC 12~24V(±10%) Transmitting frequency:24.125GHZ Protection level:IP44 Size:267×61×38mm(L×W×H) Max installation height: 3.5M 1.Used for automatic sliding door,folding door and Curve door.Radar technology is for door activation.Infrared technology is for door safety entrance. 2.Haveself-healing function. When the situation of infrareddetecting area is changed, sensor will learn the new situation as new background according to presence timer.
