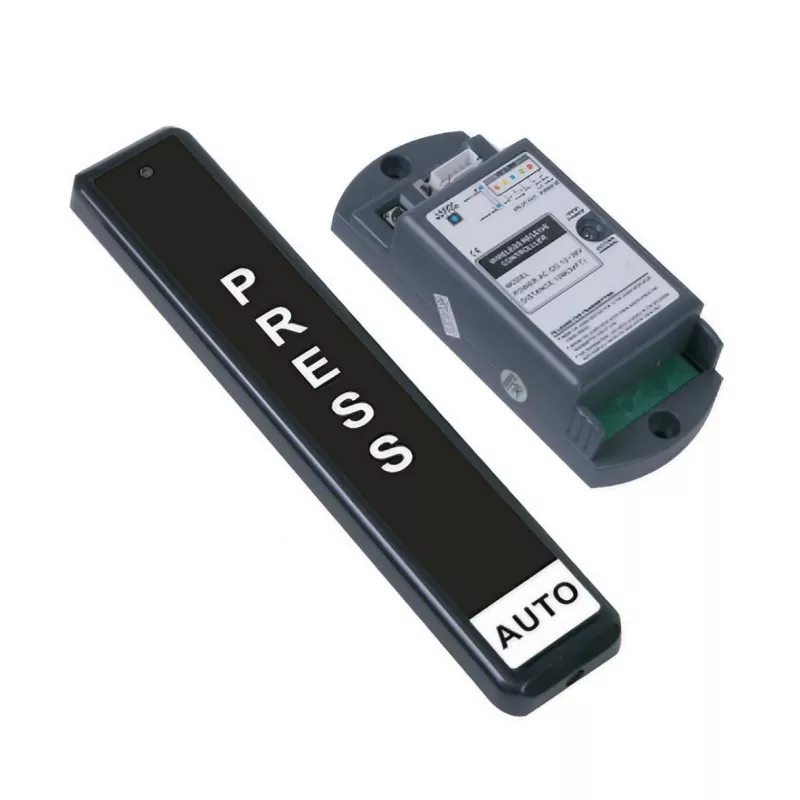

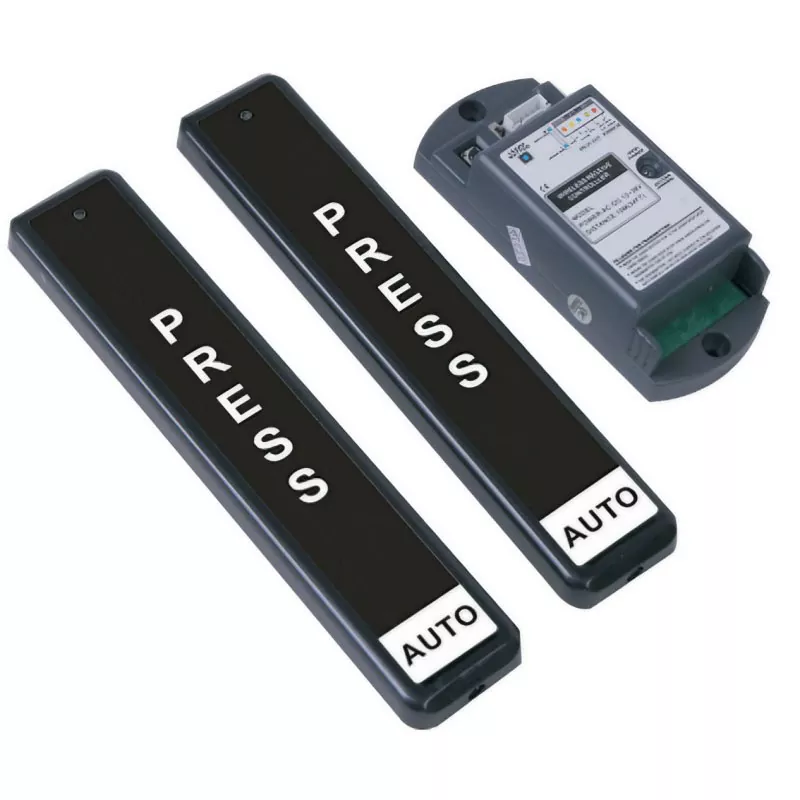

Wireless Press Button Switch for Auto Door

The high-sensitivity FM wireless push-button switch is widely utilized in various automatic doors and door control devices. This wireless touch switch employs radio waves to transmit signals, enabling the touch switch to open automatic doors effortlessly. It offers convenience for any occasion without the need for wiring. Additionally, it adopts a self-learning code feature, which allows users to add a hand switch at any time with ease.

Overall Characteristics

•Adopt uniformity frequency, high stability of wireless signal receiving and sending.

•Solidification of PU varnished shell, dapper appearance with anti-off screw.

•Operation frequency 315M, stability better than 10-5.

•Panel pushing with low-power consumption, long service life battery.

•Three point of trigger pressing design to ensure the effective action.

•With large capacity output available to be used with auto door, electric lock and access controller.

•Door open within 2s when signal received.

•Wide voltage input of AV/DC12-36V.

•Function switch with voice indicator power indicator turns green to confirm the validity of operation.

•Widely be used for auto door and door control equipment.With the wireless signal output,door can be open by  the pushing the panel.Easy installation, specially for the occasions which have the difficult in wire embedding.

Product Over-view

1) The launch indicator ( When trigger effective turns red light )

2) Pushing Panel

3) Dial switch placed inside, prevent the anti-interference by editing different signal code.

4) Fixing screw

5) Learn button

6) Indicator ( With red light when power is on, turns green when signal received )

7) L-type and M-type available for chosen for the output state.

8) Binding post

•This product is with the function of coding self-learn. Make sure the code of remote transmitter has been learned  into the receiver before using ( 16 kinds of codes can be learned. )

•Operation way: Press the learned button for 1s, indicator turns green. Press any key of the remote transmitter. The transmitter has been learned by the receiver successfully with two flashes of green light appears.

•Delete method: Press the learned button for 5s, turns to green light, all the codes have been deleted successfully ( Can not delete one by one).

•Switch off power when switching the function of L-type and M-type.

•Otherwise, the receiver maintains the previous state.

Technical Parameter

Wiring diag
